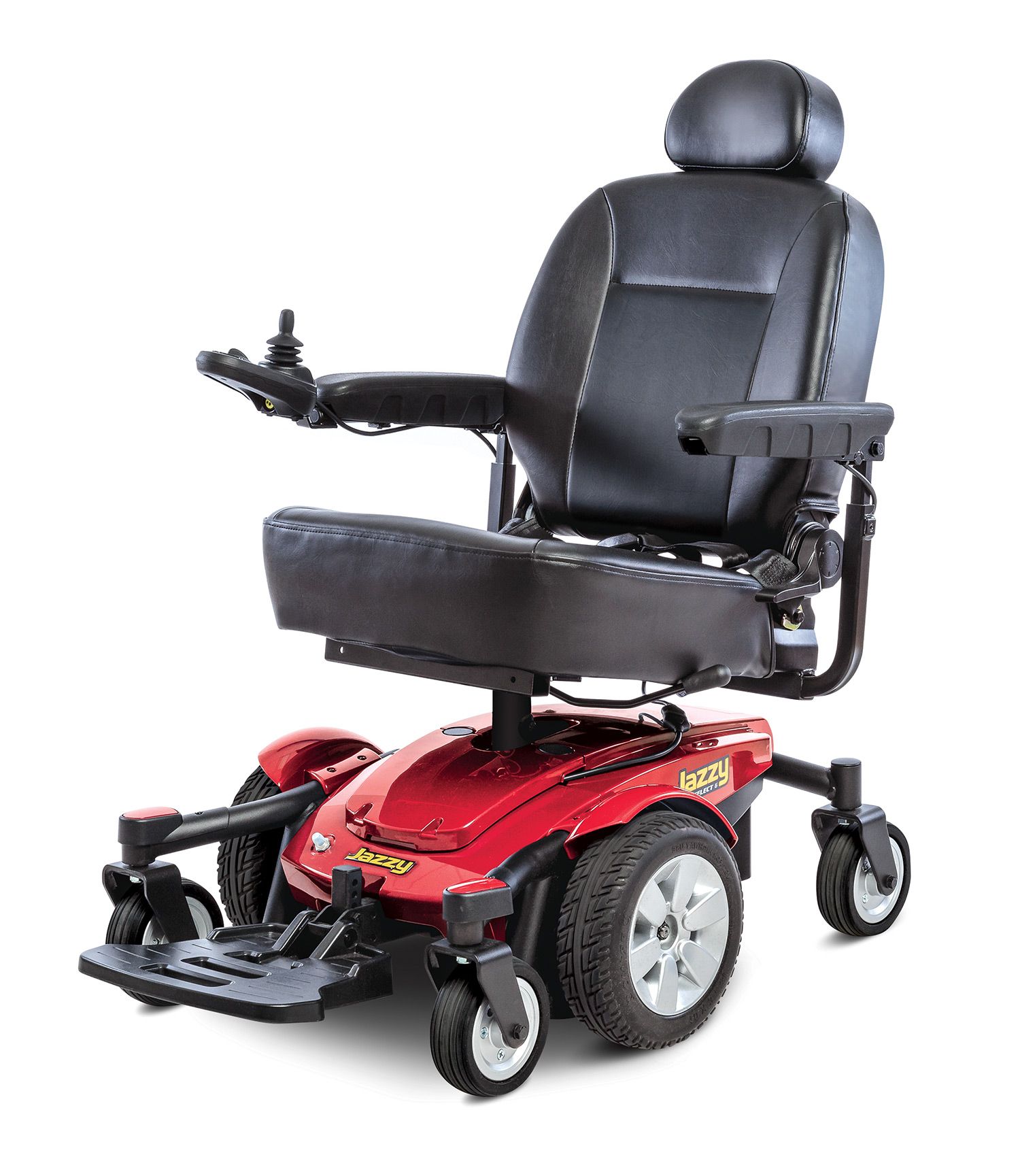

Product Overview
The Jazzy Select® 6 incorporates sporty design and performance features for a truly unique ride experience. Pride’s patented Active-Trac® Suspension combined with six wheels on the ground and an innovative articulating beam allow for superior performance in-doors and out, with added stability over uneven terrain and ramp transitions.
Features:
-
136 kg weight capacity
-
Up to 7.24 km/h maximum speed
-
55.3 cm turning radius
-
Up to 24.1 km per charge range
-
In-line joystick mount
-
Flip-up, height adjustable foot platform
-
Comfortable, depth-adjustable, limited recline comfort high back with headrest
-
Mid-wheel drive offers tight turning radius around doorways and corners
-
Patented Active-Trac® Suspension ensures a smooth ride experience over uneven surfaces
-
Dual-layer powder coated frame for increased durability
-
Built with ease of service in mind
Specifications:
Weight Capacity 136 kg (300 lbs.)
Maximum Speed Up to 6.8 km/h (4.2 mph)
Ground Clearance 4.45 cm (1.75”) at motors
and at center frame
Turning Radius 54.6 cm (21.5”)
Overall Length 90.2 cm (35.5”)
Overall Width 59.7 cm (23.5”)
Drive Wheels 25.4 cm (10”)
Front Wheels 15.24 cm (6”) solid casters
Rear Wheels 15.24 cm (6”) solid casters
Suspension Active-Trac® (ATX)
Drivetrain Two-motor, in-line,
mid-wheel drive
Braking System Regenerative and
electro-mechanical
Standard Electronics 40 amp, PG GC 3 controller
Battery Charger Off-board, 3 amp
Per-Charge Range Up to 20.8 km (12.92 miles)
Battery Requirements (2) 12 volt, deep cycle, U-1
Battery Weight 11 kg (24.5 lbs.) each
Base Weight 45.4 kg (100 lbs.)
Standard Seat Weight 19.5 kg (43 lbs.)
(comfort, high-back)
Standard Seat 46 x 46-20 cm (18” x 18-20”)
